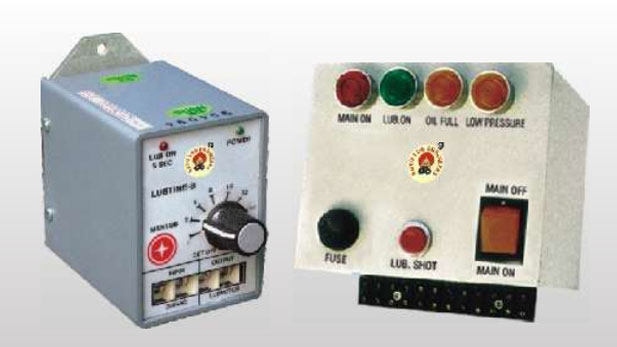

ELECTRONIC TIMER / CONTROLLER

The Electronic Timer & Controllers are used for automatic controlling of lubrication systems. There are different models used for different applications. Following models are under our regular production.

TECHNICAL SPECIFICATIONS

MODEL	ON Time	OFF Time
ALET-1-128	5 Sec. (Fixed)	1 to128 Mts. (Adjustable)
ALET-60-240	5 Sec. (Fixed)	60/120/240 Mts. (Adjustable)
ALET-2-30/120	2-30 Sec. (Fixed)	2-120 Mts. (Adjustable)
ALEC-1002 (Wall Mounting)	5- sec. (After pr. switch signal)	2, to 240 Mts. (Adjustable)
ALEC-5/2-120 (Wall Mounting)	5 Sec. (Fixed)	1 to128 Mts. (Adjustable)

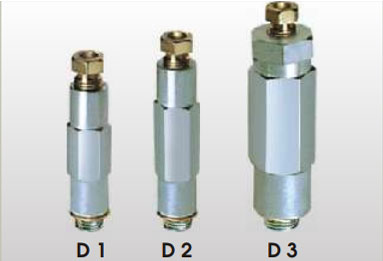

METERING CARTRIDGES

TECHNICAL SPECIFICATIONS

D1	D-2	D3
D-1 Dosage 0.01cc, 0.03 cc, 0.05 cc, 0.10 cc, 0.16 cc per stroke. D-2 Dosage 0.25 cc, 0.40 cc per stroke. D-3 Dosage 1.0 cc, 1.60 cc, Per stroke	Dosage 0.25 cc, 0.40 cc per stroke.	Dosage 1.0 cc, 1.60 cc, Per stroke

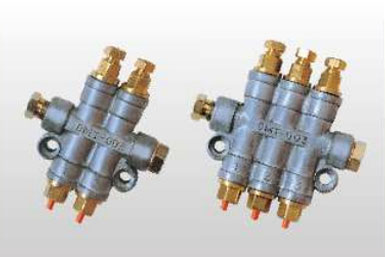

METERING INJECTORS

TECHNICAL SPECIFICATIONS

ALT- 002	ALT- 002	ALT- 004
No. of outlets - 2, Dosage in cc 0.1 to 0.4, Dosage in Drops 3 - 12.	No. of outlets - 3, Dosage in cc 0.1 to 0.4, Dosage in Drops 3 - 12.	No. of outlets - 4, Dosage in cc 0.1 to 0.4, Dosage in Drops 3 - 12.

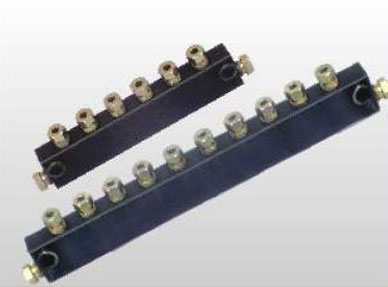

JUNCTIONS BLOCKS

TECHNICAL SPECIFICATIONS

JUNCTIONS BLOCKS	LENGTH	MOUNTING	MOUNTING
3 Ways	51 mm	37 mm.	M8X1 /1/ 8 BSP
4 Ways	51 mm	37 mm	M8X1 /1/ 8 BSP
5 Ways	70 mm	56 mm	M8X1 /1/ 8 BSP
5 Ways	89 mm.	75 mm	M8X1 /1/ 8 BSP
6 Ways	108 mm.	94 mm	M8X1 /1/ 8 BSP
7 Ways	127 mm	113 mm	M8X1 /1/ 8 BSP
8 Ways	146 mm	132 mm	M8X1 /1/ 8 BSP
9 Ways	165 mm	151 mm	M8X1 /1/ 8 BSP
