MANUAL GREASE PUMP
TECHNICAL SPECIFICATIONS

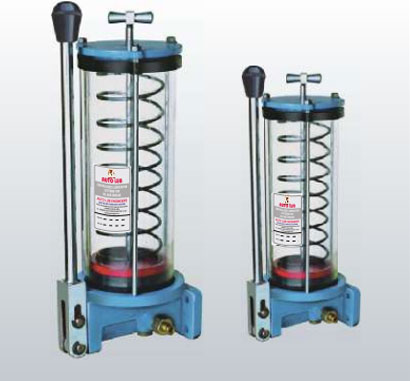

These are manually operated Piston type Grease Pumps. Which are used for grease lubrications. The grease is injected to the lubrication points under pressure by these pumps.
| MODEL | ALGP - 500 - 3 | ALGP -1000 - 4 | ALGP -1500 - 6 |
| Reservoir Capacity | 0 .5 Kg. | 1 Kg. | 1.5 Kg. |
| Discharge | 3cc Per Stroke | 4cc Per Stroke | 6cc Per Stroke |
| Maximum Pressure | 100 Kg. / Cm² | 120 Kg. / Cm² | 150 Kg / Cm² |
| Mounting | Vertical Wall Mounting 4 Holes | Vertical Wall Mounting 4 Holes | Vertical Wall Mounting 4 Holes |
